| Colors | Desert Yellow, Silver, Shadow White, Polar Night Black, Furious Orange | ||

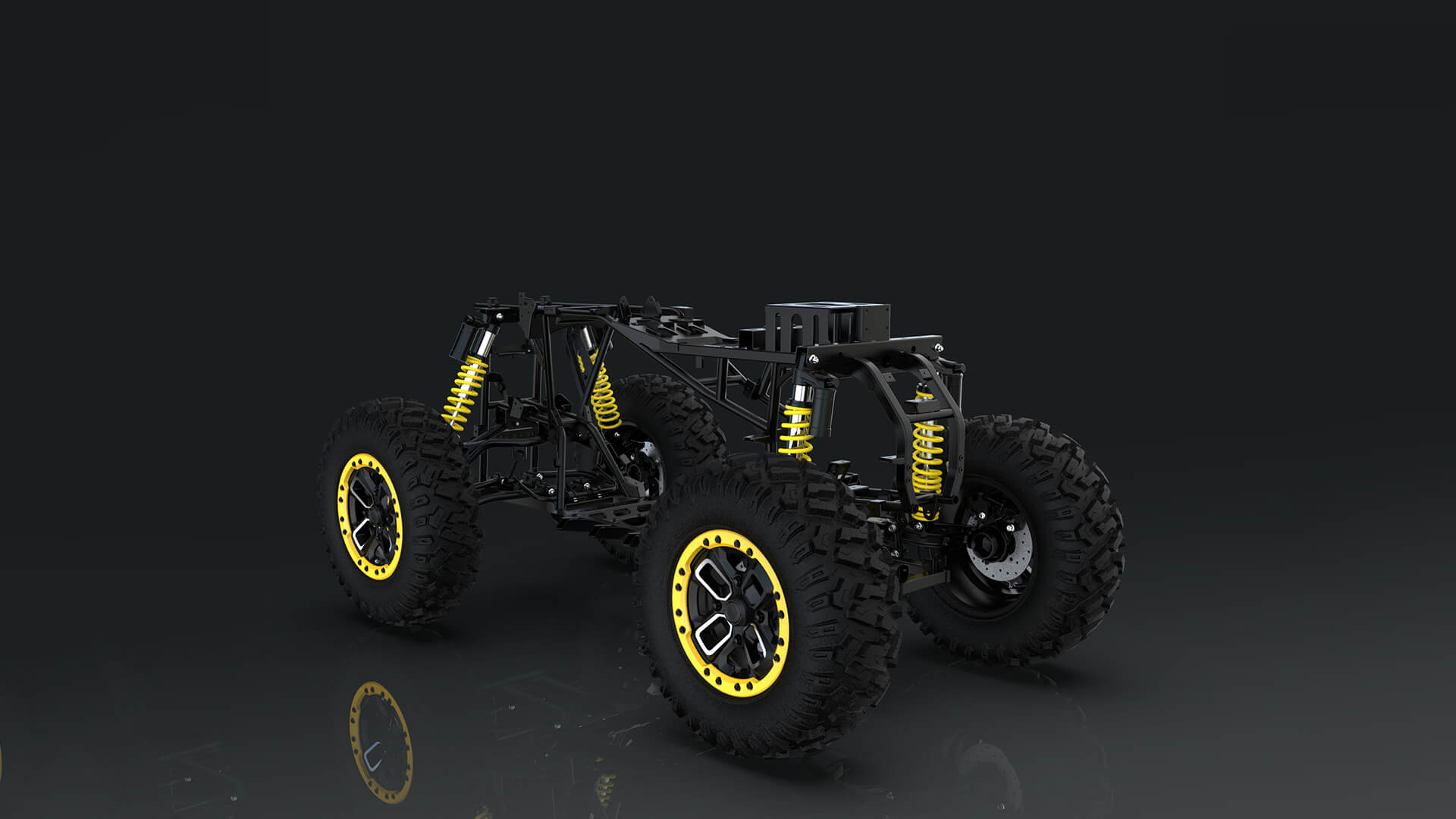

| Front suspension | Double A-frame with stabilizer bar, stroke 230mm | ||
| Front shock absorbers | Adjustable gas shock absorber | ||
| Rear suspension | Independent torsion trailing upper arm suspension, stroke 250mm | ||
| Rear shock absorbers | Adjustable gas shock absorber | ||
| Front tyres | 25 × 8 × 12 in & 26 × 9 × 14 in | ||
| Rear tires | 25 × 10 × 12 in & 26 × 11 x 14 in | ||
| Rims | 12 in. Aluminum & 14 in. Aluminum | ||
| Brakes | Dual 220 mm disc brakes | ||

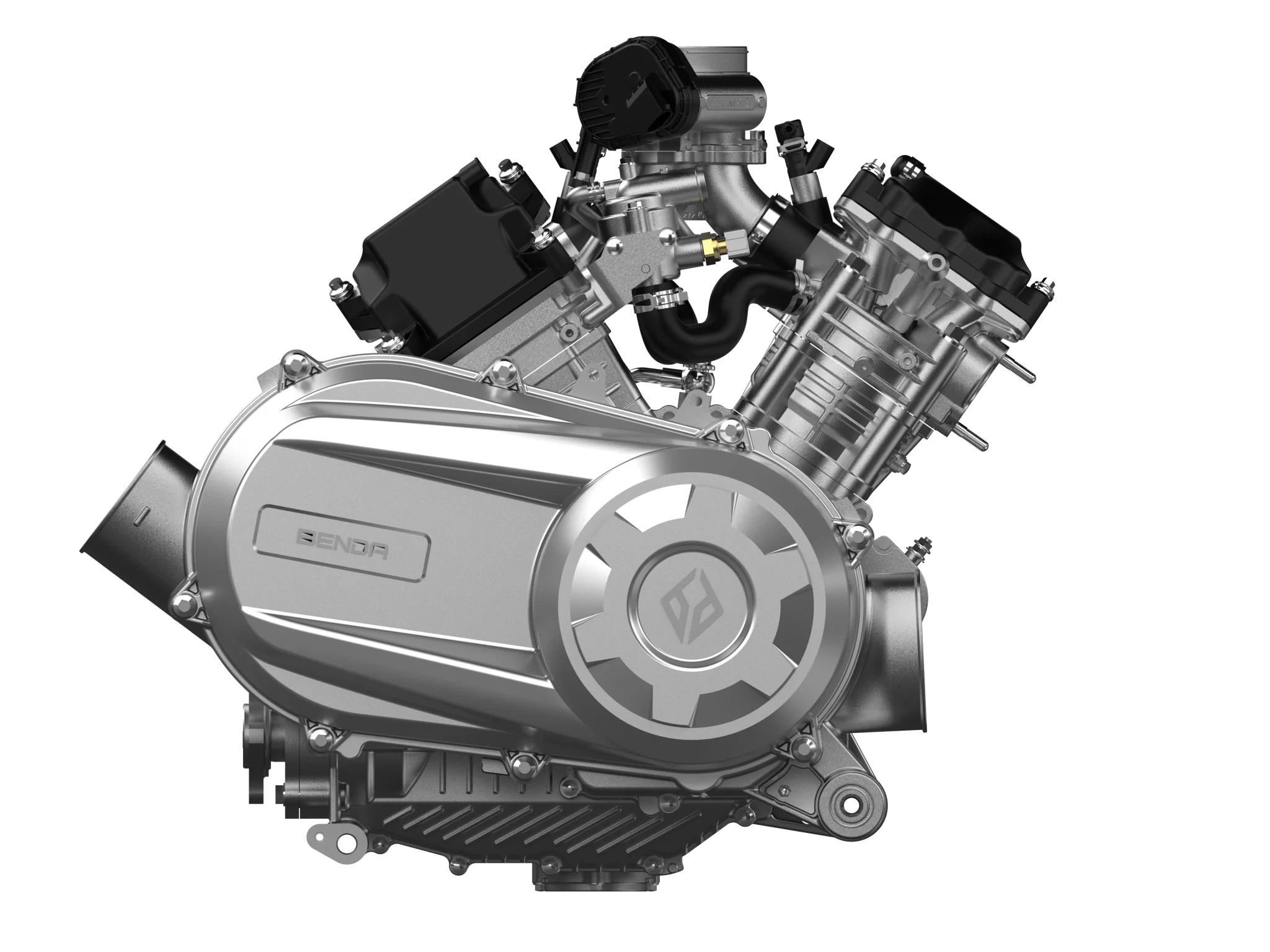

| Engine type | 4-stroke SOHC V-twin cylinder | ||
| Horsepower / Displacement | 48 HP / 500 CC | ||

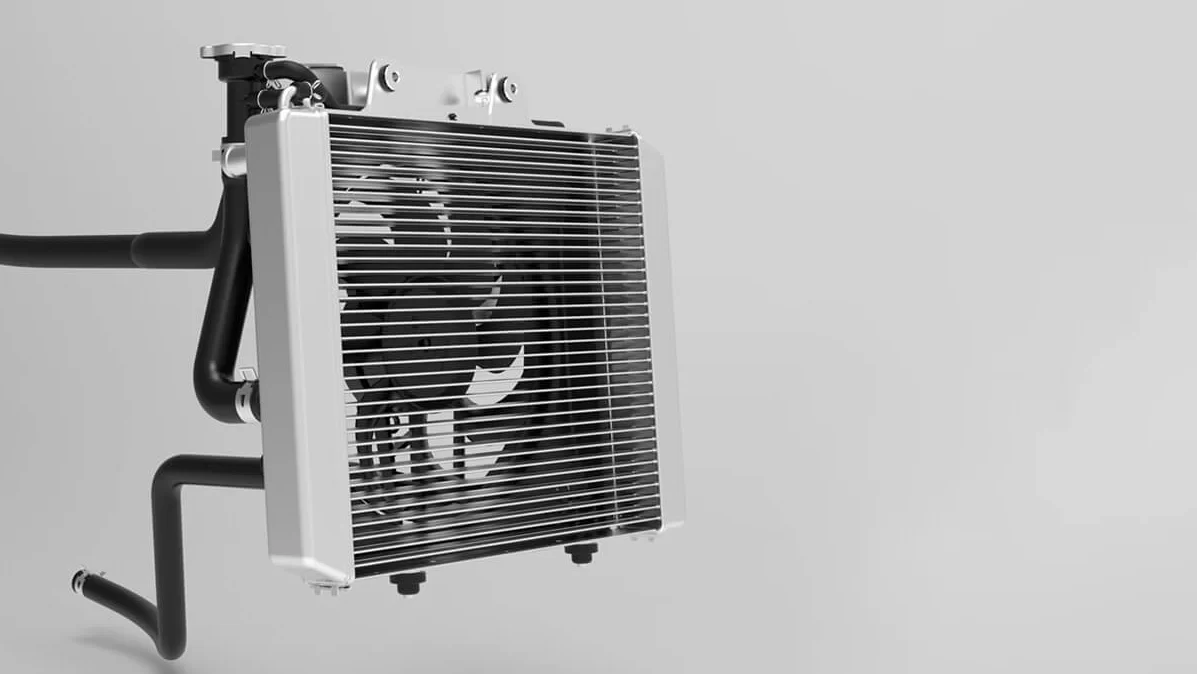

| Fuel System / Cooling | EFI/Liquid | ||
| Gearbox | CVT L / H / N / R / P | ||
| Traction system | Selectable 2WD/4WD with differential lock | ||
| L x W x H | 2150 × 1250 × 1400 mm | ||
| Wheelbase | 1500 mm | ||
| Ground clearance | 305 mm | ||
| Unladen mass | 399 kg | ||
| Towing | 697 kg | ||
| Fuel tank capacity | 30 L | ||
| Seat height | 95 cm | ||
Redstone 550 R2 ET
Redstone 550 R2 MD
Redstone 550 R2 DL
Power steering
-
EPS
EPS
Rims
12'' alloy wheels
14'' alloy wheels
14'' Beadlock alloy wheels
Display
LCD
TFT
TFT
Tires
25'' Wanda
26'' Wanda
26'' Wanda
Winch
2500lb steel cable
3500lb steel cable
3500lb nylon rope
Shocks
Oil
Gas
Gas

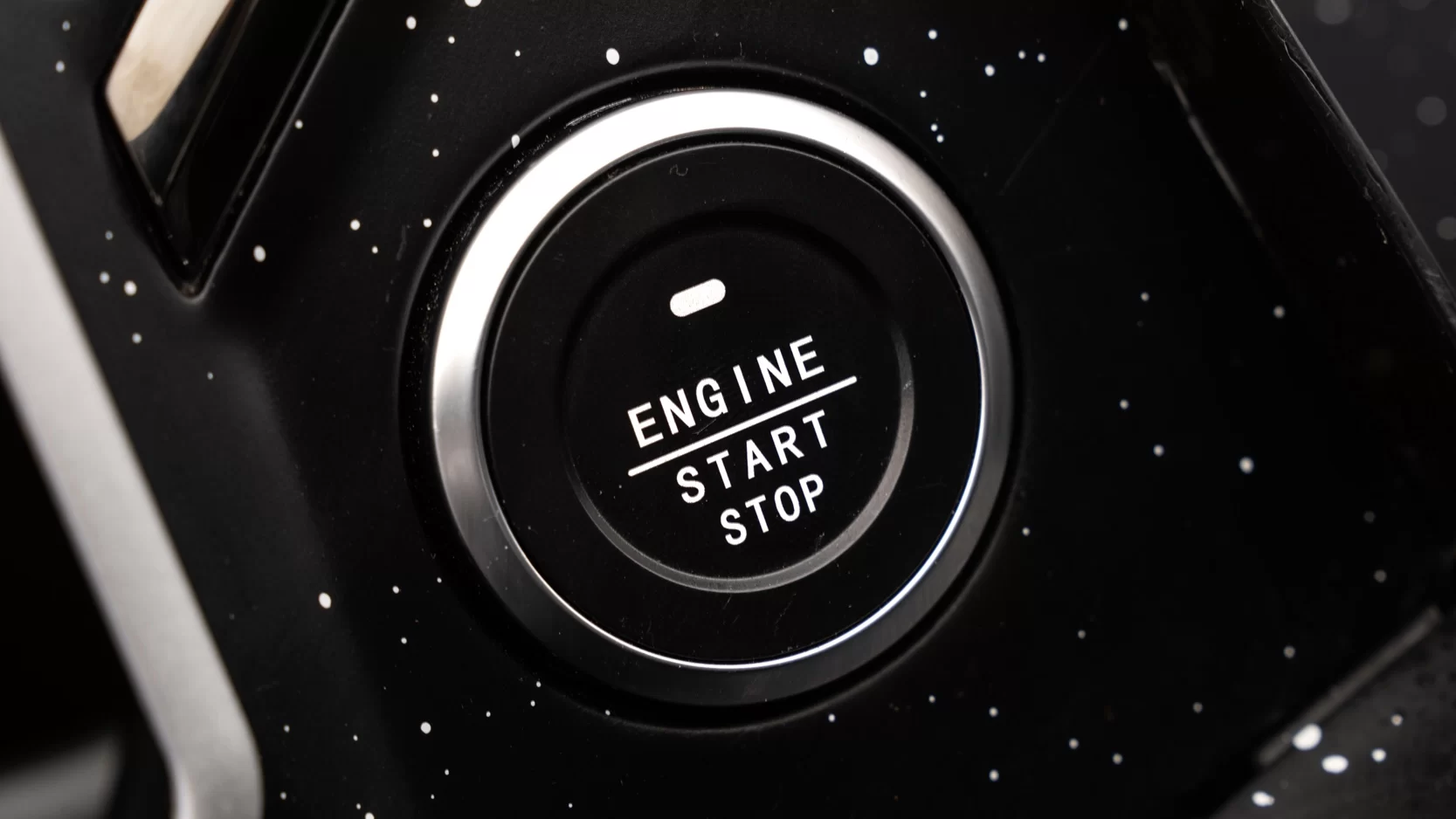

Starter
Key start
Key start
Start button
Differential lock
-
Rear
Rear
